Cylinder series KD (ISO 6431) D 80mm | Beta Online Shop
Cylinder series KD (ISO 6431) D 80mm | Beta Online Shop

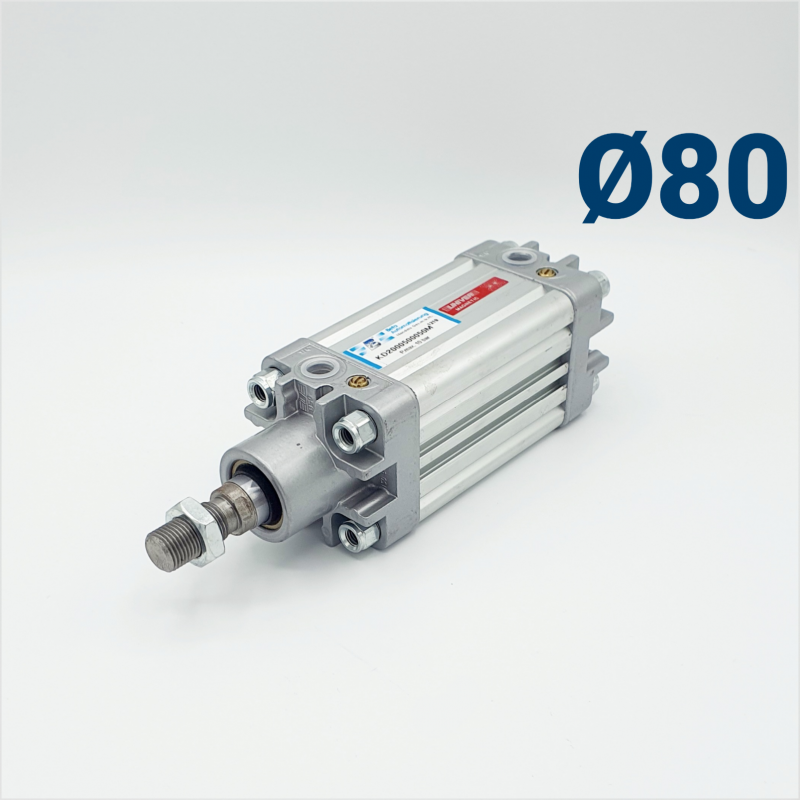

    Cylinder series KD (ISO 6431) D 80mm

    €244.99
    Tax excluded
    KD2000800015M/D01

    SPECIAL STROKES on request!

    help_outlineAsk about product
    Cylinder series KD (ISO 6431) D 80mm

    Cylinder series KD (ISO 6431) D 80mm

    I accept privacy policy rules

    Piston diameter [mm]:
    • 80
    Stroke [mm]:
    Threaded connection:
    • 3/8"
    Piston rod material:
    • Hard chrome plated
    Seal type:
    • NBR
    Rod:
    • unilateral
    Piston rod thread:
    • M20 x 1,5
    Magnetic piston:
    • Yes
    Effect:
    • double-acting
    Delivery time 1-2 Workdays

    CHARACTERISTICS
    • Ambient temperature: -20 to 80°C
    • Operating medium: filtered, unlubricated compressed air
    • Operating pressure: 1.5 to 10 bar
    3D-Model
    KD2000800015M/D01

    Data sheet

    Cylinder cover
    Die-cast aluminum
    Cylinder liner
    Anodized aluminum
    Piston
    Die-cast aluminum
    Piston guide ring
    Acetal resin
    Piston seals
    NBR

    Specific References

    Reference:
    KD2000800015M/D01
    Threaded connection: 3/8"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 15; Piston diameter: 80; Rod: unilateral; Piston rod thread: M20 x 1,5; Magnetic piston: Yes; Effect: double-acting;
    €244.99
    Reference:
    KD2000800025M
    Threaded connection: 3/8"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 25; Piston diameter: 80; Rod: unilateral; Piston rod thread: M20 x 1,5; Magnetic piston: Yes; Effect: double-acting;
    €244.99
    Reference:
    KD2000800050M
    Threaded connection: 3/8"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 50; Piston diameter: 80; Rod: unilateral; Piston rod thread: M20 x 1,5; Magnetic piston: Yes; Effect: double-acting;
    €250.12
    Reference:
    KD2000800075M
    Threaded connection: 3/8"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 75; Piston diameter: 80; Rod: unilateral; Piston rod thread: M20 x 1,5; Magnetic piston: Yes; Effect: double-acting;
    €261.75
    Reference:
    KD2000800080
    Threaded connection: 3/8"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 80; Piston diameter: 80; Rod: unilateral; Piston rod thread: M20 x 1,5; Magnetic piston: No; Effect: double-acting;
    €238.55
    Reference:
    KD2000800080M
    Threaded connection: 3/8"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 80; Piston diameter: 80; Rod: unilateral; Piston rod thread: M20 x 1,5; Magnetic piston: Yes; Effect: double-acting;
    €261.75
    Reference:
    KD2000800100M
    Threaded connection: 3/8"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 100; Piston diameter: 80; Rod: unilateral; Piston rod thread: M20 x 1,5; Magnetic piston: Yes; Effect: double-acting;
    €261.75
    Reference:
    KD2000800125M
    Threaded connection: 3/8"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 125; Piston diameter: 80; Rod: unilateral; Piston rod thread: M20 x 1,5; Magnetic piston: Yes; Effect: double-acting;
    €272.27
    Reference:
    KD2000800150M
    Threaded connection: 3/8"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 150; Piston diameter: 80; Rod: unilateral; Piston rod thread: M20 x 1,5; Magnetic piston: Yes; Effect: double-acting;
    €279.79
    Reference:
    KD2000800160M
    Threaded connection: 3/8"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 160; Piston diameter: 80; Rod: unilateral; Piston rod thread: M20 x 1,5; Magnetic piston: Yes; Effect: double-acting;
    €279.79
    Reference:
    KD2000800200M
    Threaded connection: 3/8"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 200; Piston diameter: 80; Rod: unilateral; Piston rod thread: M20 x 1,5; Magnetic piston: Yes; Effect: double-acting;
    €294.19
    Reference:
    KD2000800300M
    Threaded connection: 3/8"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 300; Piston diameter: 80; Rod: unilateral; Piston rod thread: M20 x 1,5; Magnetic piston: Yes; Effect: double-acting;
    €324.99
    Reference:
    KD2000800400M
    Threaded connection: 3/8"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 400; Piston diameter: 80; Rod: unilateral; Piston rod thread: M20 x 1,5; Magnetic piston: Yes; Effect: double-acting;
    €344.28
    Reference:
    KD2000800700M
    Threaded connection: 3/8"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 700; Piston diameter: 80; Rod: unilateral; Piston rod thread: M20 x 1,5; Magnetic piston: Yes; Effect: double-acting;
    €435.82
    Reference:
    KD2000800750M
    Threaded connection: 3/8"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 750; Piston diameter: 80; Rod: unilateral; Piston rod thread: M20 x 1,5; Magnetic piston: Yes; Effect: double-acting;
    €480.69
    Reference:
    KD2000801000M
    Threaded connection: 3/8"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 1000; Piston diameter: 80; Rod: unilateral; Piston rod thread: M20 x 1,5; Magnetic piston: Yes; Effect: double-acting;
    €587.97
    Reference:
    KD2000801100M
    Threaded connection: 3/8"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 1100; Piston diameter: 80; Rod: unilateral; Piston rod thread: M20 x 1,5; Magnetic piston: Yes; Effect: double-acting;
    €623.43
    Reference:
    KD1000800050
    Threaded connection: 3/8"; Piston rod material: Stainless steel; Seal type: NBR; Stroke/mm: 50; Piston diameter: 80; Rod: unilateral; Piston rod thread: M20 x 1,5; Magnetic piston: No; Effect: double-acting;
    €274.65
    Reference:
    KD1000800060M
    Threaded connection: 3/8"; Piston rod material: Stainless steel; Seal type: NBR; Stroke/mm: 60; Piston diameter: 80; Rod: unilateral; Piston rod thread: M20 x 1,5; Magnetic piston: Yes; Effect: double-acting;
    €328.80
    Reference:
    KD1000800150
    Threaded connection: 3/8"; Piston rod material: Stainless steel; Seal type: NBR; Stroke/mm: 150; Piston diameter: 80; Rod: unilateral; Piston rod thread: M20 x 1,5; Magnetic piston: No; Effect: double-acting;
    €295.27
