Cylinder series KD (ISO 6431) D 50mm - 1

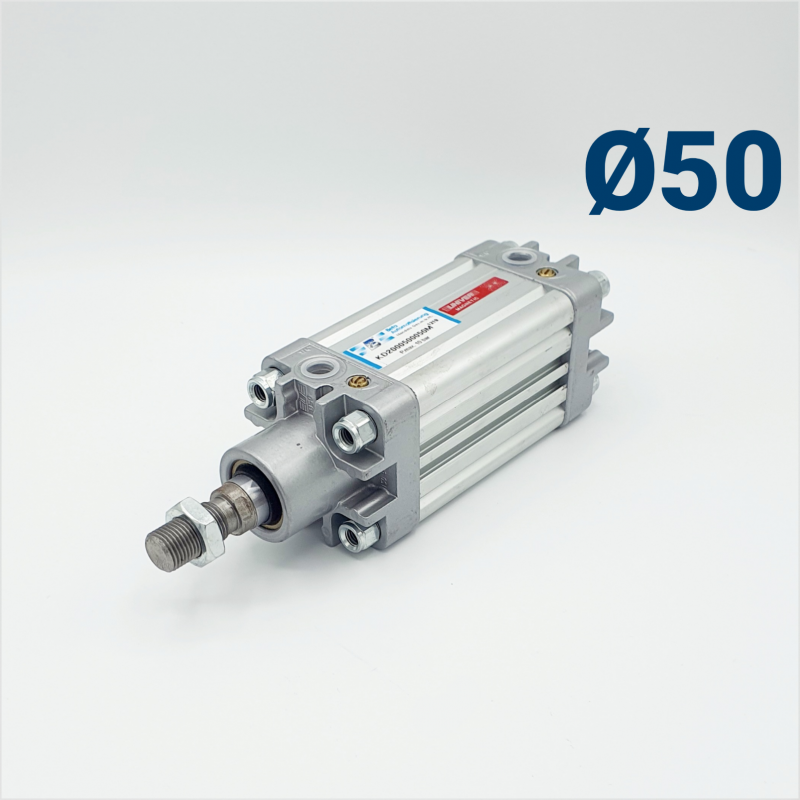

    Cylinder series KD (ISO 6431) D 50mm

    €145.71
    Tax excluded
    KD2000500020M

    SPECIAL STROKES on request!

    help_outlineAsk about product
    Cylinder series KD (ISO 6431) D 50mm

    Cylinder series KD (ISO 6431) D 50mm

    I accept privacy policy rules

    Piston diameter [mm]:
    • 50
    Stroke [mm]:
    Threaded connection:
    • 1/4"
    Piston rod material:
    • Hard chrome plated
    Seal type:
    • NBR
    Rod:
    • unilateral
    Piston rod thread:
    • M16 x 1,5
    Magnetic piston:
    • Yes
    Effect:
    • double-acting
    Delivery time 1-2 Workdays

    CHARACTERISTICS
    • Ambient temperature: -20 to 80°C
    • Operating medium: filtered, unlubricated compressed air
    • Operating pressure: 1.5 to 10 bar
    KD2000500020M

    Data sheet

    Cylinder cover
    Die-cast aluminum
    Cylinder liner
    Anodized aluminum
    Piston
    Die-cast aluminum
    Piston guide ring
    Acetal resin
    Piston seals
    NBR

    Specific References

    Reference:
    KD2000500020M
    Threaded connection: 1/4"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 20; Piston diameter: 50; Rod: unilateral; Piston rod thread: M16 x 1,5; Magnetic piston: Yes; Effect: double-acting;
    €145.71
    Reference:
    KD2000500025M
    Threaded connection: 1/4"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 25; Piston diameter: 50; Rod: unilateral; Piston rod thread: M16 x 1,5; Magnetic piston: Yes; Effect: double-acting;
    €145.71
    Reference:
    KD2000500030M
    Threaded connection: 1/4"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 30; Piston diameter: 50; Rod: unilateral; Piston rod thread: M16 x 1,5; Magnetic piston: Yes; Effect: double-acting;
    €149.57
    Reference:
    KD2000500040M
    Threaded connection: 1/4"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 40; Piston diameter: 50; Rod: unilateral; Piston rod thread: M16 x 1,5; Magnetic piston: Yes; Effect: double-acting;
    €149.57
    Reference:
    KD2000500050M
    Threaded connection: 1/4"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 50; Piston diameter: 50; Rod: unilateral; Piston rod thread: M16 x 1,5; Magnetic piston: Yes; Effect: double-acting;
    €150.88
    Reference:
    KD2000500060M
    Threaded connection: 1/4"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 60; Piston diameter: 50; Rod: unilateral; Piston rod thread: M16 x 1,5; Magnetic piston: Yes; Effect: double-acting;
    €157.31
    Reference:
    KD2000500065M
    Threaded connection: 1/4"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 65; Piston diameter: 50; Rod: unilateral; Piston rod thread: M16 x 1,5; Magnetic piston: Yes; Effect: double-acting;
    €158.60
    Reference:
    KD2000500075M
    Threaded connection: 1/4"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 75; Piston diameter: 50; Rod: unilateral; Piston rod thread: M16 x 1,5; Magnetic piston: Yes; Effect: double-acting;
    €158.60
    Reference:
    KD2000500080M
    Threaded connection: 1/4"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 80; Piston diameter: 50; Rod: unilateral; Piston rod thread: M16 x 1,5; Magnetic piston: Yes; Effect: double-acting;
    €163.76
    Reference:
    KD2000500100M
    Threaded connection: 1/4"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 100; Piston diameter: 50; Rod: unilateral; Piston rod thread: M16 x 1,5; Magnetic piston: Yes; Effect: double-acting;
    €163.71
    Reference:
    KD2000500110M
    Threaded connection: 1/4"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 110; Piston diameter: 50; Rod: unilateral; Piston rod thread: M16 x 1,5; Magnetic piston: Yes; Effect: double-acting;
    €165.04
    Reference:
    KD2000500120M
    Threaded connection: 1/4"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 120; Piston diameter: 50; Rod: unilateral; Piston rod thread: M16 x 1,5; Magnetic piston: Yes; Effect: double-acting;
    €167.63
    Reference:
    KD2000500125M
    Threaded connection: 1/4"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 125; Piston diameter: 50; Rod: unilateral; Piston rod thread: M16 x 1,5; Magnetic piston: Yes; Effect: double-acting;
    €168.92
    Reference:
    KD2000500150M
    Threaded connection: 1/4"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 150; Piston diameter: 50; Rod: unilateral; Piston rod thread: M16 x 1,5; Magnetic piston: Yes; Effect: double-acting;
    €172.78
    Reference:
    KD2000500160M
    Threaded connection: 1/4"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 160; Piston diameter: 50; Rod: unilateral; Piston rod thread: M16 x 1,5; Magnetic piston: Yes; Effect: double-acting;
    €172.78
    Reference:
    KD2000500180M
    Threaded connection: 1/4"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 180; Piston diameter: 50; Rod: unilateral; Piston rod thread: M16 x 1,5; Magnetic piston: Yes; Effect: double-acting;
    €179.24
    Reference:
    KD2000500200M
    Threaded connection: 1/4"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 200; Piston diameter: 50; Rod: unilateral; Piston rod thread: M16 x 1,5; Magnetic piston: Yes; Effect: double-acting;
    €181.81
    Reference:
    KD2000500220M
    Threaded connection: 1/4"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 220; Piston diameter: 50; Rod: unilateral; Piston rod thread: M16 x 1,5; Magnetic piston: Yes; Effect: double-acting;
    €186.96
    Reference:
    KD2000500250M
    Threaded connection: 1/4"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 250; Piston diameter: 50; Rod: unilateral; Piston rod thread: M16 x 1,5; Magnetic piston: Yes; Effect: double-acting;
    €192.11
    Reference:
    KD2000500265M
    Threaded connection: 1/4"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 265; Piston diameter: 50; Rod: unilateral; Piston rod thread: M16 x 1,5; Magnetic piston: Yes; Effect: double-acting;
    €198.58
    Reference:
    KD2000500300M
    Threaded connection: 1/4"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 300; Piston diameter: 50; Rod: unilateral; Piston rod thread: M16 x 1,5; Magnetic piston: Yes; Effect: double-acting;
    €201.16
    Reference:
    KD2000500350M
    Threaded connection: 1/4"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 350; Piston diameter: 50; Rod: unilateral; Piston rod thread: M16 x 1,5; Magnetic piston: Yes; Effect: double-acting;
    €221.77
    Reference:
    KD2000500400M
    Threaded connection: 1/4"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 400; Piston diameter: 50; Rod: unilateral; Piston rod thread: M16 x 1,5; Magnetic piston: Yes; Effect: double-acting;
    €221.84
    Reference:
    KD2000500450M
    Threaded connection: 1/4"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 450; Piston diameter: 50; Rod: unilateral; Piston rod thread: M16 x 1,5; Magnetic piston: Yes; Effect: double-acting;
    €230.22
    Reference:
    KD2000500500
    Threaded connection: 1/4"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 500; Piston diameter: 50; Rod: unilateral; Piston rod thread: M16 x 1,5; Magnetic piston: No; Effect: double-acting;
    €226.95
    Reference:
    KD2000500500M
    Threaded connection: 1/4"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 500; Piston diameter: 50; Rod: unilateral; Piston rod thread: M16 x 1,5; Magnetic piston: Yes; Effect: double-acting;
    €238.55
    Reference:
    KD2000500600
    Threaded connection: 1/4"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 600; Piston diameter: 50; Rod: unilateral; Piston rod thread: M16 x 1,5; Magnetic piston: No; Effect: double-acting;
    €256.59
    Reference:
    KD2000500700
    Threaded connection: 1/4"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 700; Piston diameter: 50; Rod: unilateral; Piston rod thread: M16 x 1,5; Magnetic piston: No; Effect: double-acting;
    €290.11
    Reference:
    KD2000500700M
    Threaded connection: 1/4"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 700; Piston diameter: 50; Rod: unilateral; Piston rod thread: M16 x 1,5; Magnetic piston: Yes; Effect: double-acting;
    €301.72
    Reference:
    KD2000500750M
    Threaded connection: 1/4"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 750; Piston diameter: 50; Rod: unilateral; Piston rod thread: M16 x 1,5; Magnetic piston: Yes; Effect: double-acting;
    €323.65
    Reference:
    KD2000500800M
    Threaded connection: 1/4"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 800; Piston diameter: 50; Rod: unilateral; Piston rod thread: M16 x 1,5; Magnetic piston: Yes; Effect: double-acting;
    €323.65
    Reference:
    KD2000500820M
    Threaded connection: 1/4"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 820; Piston diameter: 50; Rod: unilateral; Piston rod thread: M16 x 1,5; Magnetic piston: Yes; Effect: double-acting;
    €326.24
    Reference:
    KD2000501000M
    Threaded connection: 1/4"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 1000; Piston diameter: 50; Rod: unilateral; Piston rod thread: M16 x 1,5; Magnetic piston: Yes; Effect: double-acting;
    €362.32
    Reference:
    KD2000501100M
    Threaded connection: 1/4"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 1100; Piston diameter: 50; Rod: unilateral; Piston rod thread: M16 x 1,5; Magnetic piston: Yes; Effect: double-acting;
    €426.25
    Reference:
    KD2000501350M
    Threaded connection: 1/4"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 1350; Piston diameter: 50; Rod: unilateral; Piston rod thread: M16 x 1,5; Magnetic piston: Yes; Effect: double-acting;
    €426.80
    Reference:
    KD1000500200M
    Threaded connection: 1/4"; Piston rod material: Stainless steel; Seal type: NBR; Stroke/mm: 200; Piston diameter: 50; Rod: unilateral; Piston rod thread: M16 x 1,5; Magnetic piston: Yes; Effect: double-acting;
    €211.47
    Reference:
    KD1000500350M
    Threaded connection: 1/4"; Piston rod material: Stainless steel; Seal type: NBR; Stroke/mm: 350; Piston diameter: 50; Rod: unilateral; Piston rod thread: M16 x 1,5; Magnetic piston: Yes; Effect: double-acting;
    €250.14
    Reference:
    KD1000500400M
    Threaded connection: 1/4"; Piston rod material: Stainless steel; Seal type: NBR; Stroke/mm: 400; Piston diameter: 50; Rod: unilateral; Piston rod thread: M16 x 1,5; Magnetic piston: Yes; Effect: double-acting;
    €269.49
    Reference:
    KD1000500500M
    Threaded connection: 1/4"; Piston rod material: Stainless steel; Seal type: NBR; Stroke/mm: 500; Piston diameter: 50; Rod: unilateral; Piston rod thread: M16 x 1,5; Magnetic piston: Yes; Effect: double-acting;
    €290.11
    Reference:
    KD1000500850M
    Threaded connection: 1/4"; Piston rod material: Stainless steel; Seal type: NBR; Stroke/mm: 850; Piston diameter: 50; Rod: unilateral; Piston rod thread: M16 x 1,5; Magnetic piston: Yes; Effect: double-acting;
    €434.53
