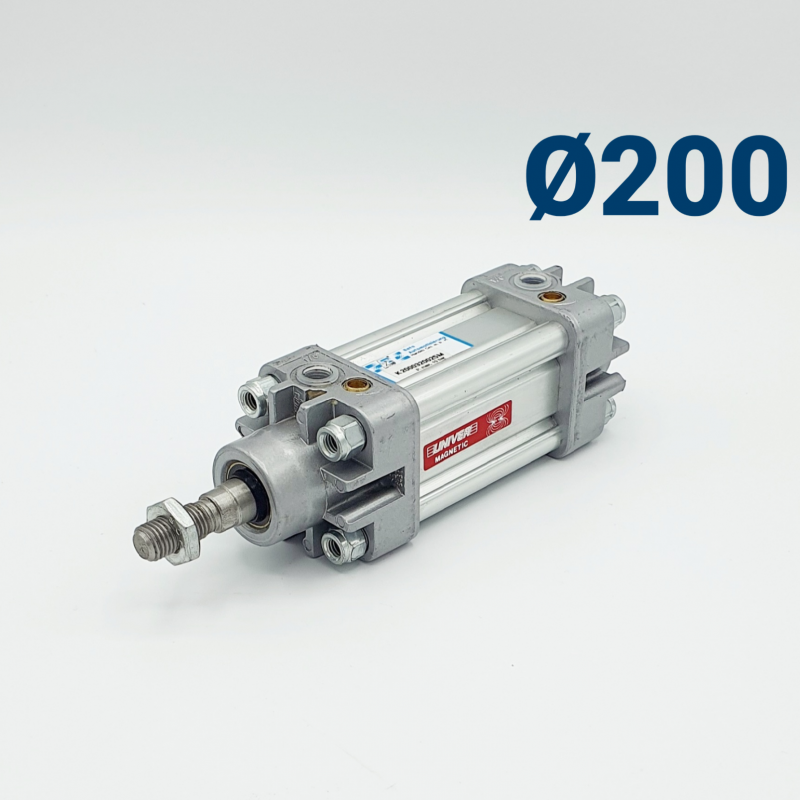

Cylinder series K (ISO 6431/ VDMA 24562) D 200mm - 1
Cylinder series K (ISO 6431/ VDMA 24562) D 200mm - 1

    Cylinder series K (ISO 6431/ VDMA 24562) D 200mm

    €921.92
    Tax excluded
    K2002000015M

    SPECIAL STROKES on request!

    help_outlineAsk about product
    Cylinder series K (ISO 6431/ VDMA 24562) D 200mm

    Cylinder series K (ISO 6431/ VDMA 24562) D 200mm

    I accept privacy policy rules

    Piston diameter [mm]:
    • 200
    Stroke [mm]:
    Threaded connection:
    • 3/4"
    Piston rod material:
    • Hard chrome plated
    Seal type:
    • NBR
    Rod:
    • unilateral
    Piston rod thread:
    • M36 x 2
    Magnetic piston:
    • Yes
    Effect:
    • double-acting
    Delivery time 1-2 Workdays

    CHARACTERISTICS
    • Ambient temperature: -20 to 80°C
    • Operating medium: filtered, unlubricated compressed air
    • Operating pressure: 1.5 to 10 bar

    3D-Model
    K2002000015M

    Data sheet

    Cylinder cover
    Die-cast aluminum
    Cylinder liner
    Anodized aluminum
    Piston
    Die-cast aluminum
    Piston guide ring
    Acetal resin
    Piston seals
    NBR

    Specific References

    Reference:
    K2002000015M
    Threaded connection: 3/4"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 15; Piston diameter: 200; Rod: unilateral; Piston rod thread: M36 x 2; Magnetic piston: Yes; Effect: double-acting;
    €921.92
    Reference:
    K2002000020
    Threaded connection: 3/4"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 20; Piston diameter: 200; Rod: unilateral; Piston rod thread: M36 x 2; Magnetic piston: No; Effect: double-acting;
    €906.45
    Reference:
    K2002000020M
    Threaded connection: 3/4"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 20; Piston diameter: 200; Rod: unilateral; Piston rod thread: M36 x 2; Magnetic piston: Yes; Effect: double-acting;
    €921.92
    Reference:
    K2002000025
    Threaded connection: 3/4"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 25; Piston diameter: 200; Rod: unilateral; Piston rod thread: M36 x 2; Magnetic piston: No; Effect: double-acting;
    €906.45
    Reference:
    K2002000025M
    Threaded connection: 3/4"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 25; Piston diameter: 200; Rod: unilateral; Piston rod thread: M36 x 2; Magnetic piston: Yes; Effect: double-acting;
    €921.92
    Reference:
    K2002000050
    Threaded connection: 3/4"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 50; Piston diameter: 200; Rod: unilateral; Piston rod thread: M36 x 2; Magnetic piston: No; Effect: double-acting;
    €929.67
    Reference:
    K2002000050M
    Threaded connection: 3/4"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 50; Piston diameter: 200; Rod: unilateral; Piston rod thread: M36 x 2; Magnetic piston: Yes; Effect: double-acting;
    €945.15
    Reference:
    K2002000065
    Threaded connection: 3/4"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 65; Piston diameter: 200; Rod: unilateral; Piston rod thread: M36 x 2; Magnetic piston: No; Effect: double-acting;
    €952.89
    Reference:
    K2002000070M
    Threaded connection: 3/4"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 70; Piston diameter: 200; Rod: unilateral; Piston rod thread: M36 x 2; Magnetic piston: Yes; Effect: double-acting;
    €968.35
    Reference:
    K2002000075
    Threaded connection: 3/4"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 75; Piston diameter: 200; Rod: unilateral; Piston rod thread: M36 x 2; Magnetic piston: No; Effect: double-acting;
    €952.89
    Reference:
    K2002000075M
    Threaded connection: 3/4"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 75; Piston diameter: 200; Rod: unilateral; Piston rod thread: M36 x 2; Magnetic piston: Yes; Effect: double-acting;
    €968.35
    Reference:
    K2002000080
    Threaded connection: 3/4"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 80; Piston diameter: 200; Rod: unilateral; Piston rod thread: M36 x 2; Magnetic piston: No; Effect: double-acting;
    €976.08
    Reference:
    K2002000080M
    Threaded connection: 3/4"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 80; Piston diameter: 200; Rod: unilateral; Piston rod thread: M36 x 2; Magnetic piston: Yes; Effect: double-acting;
    €991.55
    Reference:
    K2002000095
    Threaded connection: 3/4"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 95; Piston diameter: 200; Rod: unilateral; Piston rod thread: M36 x 2; Magnetic piston: No; Effect: double-acting;
    €976.08
    Reference:
    K2002000100
    Threaded connection: 3/4"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 100; Piston diameter: 200; Rod: unilateral; Piston rod thread: M36 x 2; Magnetic piston: No; Effect: double-acting;
    €976.08
    Reference:
    K2002000100M
    Threaded connection: 3/4"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 100; Piston diameter: 200; Rod: unilateral; Piston rod thread: M36 x 2; Magnetic piston: Yes; Effect: double-acting;
    €988.98
    Reference:
    K2002000110
    Threaded connection: 3/4"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 110; Piston diameter: 200; Rod: unilateral; Piston rod thread: M36 x 2; Magnetic piston: No; Effect: double-acting;
    €999.29
    Reference:
    K2002000110M
    Threaded connection: 3/4"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 110; Piston diameter: 200; Rod: unilateral; Piston rod thread: M36 x 2; Magnetic piston: Yes; Effect: double-acting;
    €1,014.78
    Reference:
    K2002000115
    Threaded connection: 3/4"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 115; Piston diameter: 200; Rod: unilateral; Piston rod thread: M36 x 2; Magnetic piston: No; Effect: double-acting;
    €999.29
    Reference:
    K2002000125
    Threaded connection: 3/4"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 125; Piston diameter: 200; Rod: unilateral; Piston rod thread: M36 x 2; Magnetic piston: No; Effect: double-acting;
    €999.29
    Reference:
    K2002000125M
    Threaded connection: 3/4"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 125; Piston diameter: 200; Rod: unilateral; Piston rod thread: M36 x 2; Magnetic piston: Yes; Effect: double-acting;
    €1,014.78
    Reference:
    K2002000150
    Threaded connection: 3/4"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 150; Piston diameter: 200; Rod: unilateral; Piston rod thread: M36 x 2; Magnetic piston: No; Effect: double-acting;
    €1,022.50
    Reference:
    K2002000150M
    Threaded connection: 3/4"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 150; Piston diameter: 200; Rod: unilateral; Piston rod thread: M36 x 2; Magnetic piston: Yes; Effect: double-acting;
    €1,037.97
    Reference:
    K2002000160
    Threaded connection: 3/4"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 160; Piston diameter: 200; Rod: unilateral; Piston rod thread: M36 x 2; Magnetic piston: No; Effect: double-acting;
    €1,045.72
    Reference:
    K2002000160M
    Threaded connection: 3/4"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 160; Piston diameter: 200; Rod: unilateral; Piston rod thread: M36 x 2; Magnetic piston: Yes; Effect: double-acting;
    €1,061.18
    Reference:
    K2002000200
    Threaded connection: 3/4"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 200; Piston diameter: 200; Rod: unilateral; Piston rod thread: M36 x 2; Magnetic piston: No; Effect: double-acting;
    €1,129.53
    Reference:
    K2002000200M
    Threaded connection: 3/4"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 200; Piston diameter: 200; Rod: unilateral; Piston rod thread: M36 x 2; Magnetic piston: Yes; Effect: double-acting;
    €1,114.05
    Reference:
    K2002000250
    Threaded connection: 3/4"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 250; Piston diameter: 200; Rod: unilateral; Piston rod thread: M36 x 2; Magnetic piston: No; Effect: double-acting;
    €1,146.29
    Reference:
    K2002000250M
    Threaded connection: 3/4"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 250; Piston diameter: 200; Rod: unilateral; Piston rod thread: M36 x 2; Magnetic piston: Yes; Effect: double-acting;
    €1,155.32
    Reference:
    K2002000300
    Threaded connection: 3/4"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 300; Piston diameter: 200; Rod: unilateral; Piston rod thread: M36 x 2; Magnetic piston: No; Effect: double-acting;
    €1,193.99
    Reference:
    K2002000300M
    Threaded connection: 3/4"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 300; Piston diameter: 200; Rod: unilateral; Piston rod thread: M36 x 2; Magnetic piston: Yes; Effect: double-acting;
    €1,206.89
    Reference:
    K2002000320
    Threaded connection: 3/4"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 320; Piston diameter: 200; Rod: unilateral; Piston rod thread: M36 x 2; Magnetic piston: No; Effect: double-acting;
    €1,253.30
    Reference:
    K2002000320M
    Threaded connection: 3/4"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 320; Piston diameter: 200; Rod: unilateral; Piston rod thread: M36 x 2; Magnetic piston: Yes; Effect: double-acting;
    €1,252.03
    Reference:
    K2002000350
    Threaded connection: 3/4"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 350; Piston diameter: 200; Rod: unilateral; Piston rod thread: M36 x 2; Magnetic piston: No; Effect: double-acting;
    €1,236.54
    Reference:
    K2002000350M
    Threaded connection: 3/4"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 350; Piston diameter: 200; Rod: unilateral; Piston rod thread: M36 x 2; Magnetic piston: Yes; Effect: double-acting;
    €1,252.03
    Reference:
    K2002000400
    Threaded connection: 3/4"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 400; Piston diameter: 200; Rod: unilateral; Piston rod thread: M36 x 2; Magnetic piston: No; Effect: double-acting;
    €1,289.43
    Reference:
    K2002000400M
    Threaded connection: 3/4"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 400; Piston diameter: 200; Rod: unilateral; Piston rod thread: M36 x 2; Magnetic piston: Yes; Effect: double-acting;
    €1,299.74
    Reference:
    K2002000450
    Threaded connection: 3/4"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 450; Piston diameter: 200; Rod: unilateral; Piston rod thread: M36 x 2; Magnetic piston: No; Effect: double-acting;
    €1,331.97
    Reference:
    K2002000450M
    Threaded connection: 3/4"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 450; Piston diameter: 200; Rod: unilateral; Piston rod thread: M36 x 2; Magnetic piston: Yes; Effect: double-acting;
    €1,347.44
    Reference:
    K2002000500
    Threaded connection: 3/4"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 500; Piston diameter: 200; Rod: unilateral; Piston rod thread: M36 x 2; Magnetic piston: No; Effect: double-acting;
    €1,379.67
    Reference:
    K2002000500M
    Threaded connection: 3/4"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 500; Piston diameter: 200; Rod: unilateral; Piston rod thread: M36 x 2; Magnetic piston: Yes; Effect: double-acting;
    €1,394.98
    Reference:
    K2002000600M
    Threaded connection: 3/4"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 600; Piston diameter: 200; Rod: unilateral; Piston rod thread: M36 x 2; Magnetic piston: Yes; Effect: double-acting;
    €1,490.56
    Reference:
    K2002000800
    Threaded connection: 3/4"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 800; Piston diameter: 200; Rod: unilateral; Piston rod thread: M36 x 2; Magnetic piston: No; Effect: double-acting;
    €1,664.62
    Reference:
    K2002000950
    Threaded connection: 3/4"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 950; Piston diameter: 200; Rod: unilateral; Piston rod thread: M36 x 2; Magnetic piston: No; Effect: double-acting;
    €1,854.17
    Reference:
    K2002000970M
    Threaded connection: 3/4"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 970; Piston diameter: 200; Rod: unilateral; Piston rod thread: M36 x 2; Magnetic piston: Yes; Effect: double-acting;
    €1,869.64
    Reference:
    K2002001000
    Threaded connection: 3/4"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 1000; Piston diameter: 200; Rod: unilateral; Piston rod thread: M36 x 2; Magnetic piston: No; Effect: double-acting;
    €1,854.17
    Reference:
    K2002001000M
    Threaded connection: 3/4"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 1000; Piston diameter: 200; Rod: unilateral; Piston rod thread: M36 x 2; Magnetic piston: Yes; Effect: double-acting;
    €1,838.70
    Reference:
    K2002001500
    Threaded connection: 3/4"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 1500; Piston diameter: 200; Rod: unilateral; Piston rod thread: M36 x 2; Magnetic piston: No; Effect: double-acting;
    €2,108.19
    Reference:
    K2002001500M
    Threaded connection: 3/4"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 1500; Piston diameter: 200; Rod: unilateral; Piston rod thread: M36 x 2; Magnetic piston: Yes; Effect: double-acting;
    €2,141.71
    Reference:
    K2012000050
    Threaded connection: 3/4"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 50; Piston diameter: 200; Rod: double rod; Piston rod thread: M36 x 2; Magnetic piston: No; Effect: double-acting;
    €1,427.39
    Reference:
    K2012000250
    Threaded connection: 3/4"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 250; Piston diameter: 200; Rod: double rod; Piston rod thread: M36 x 2; Magnetic piston: No; Effect: double-acting;
    €1,713.64
    Reference:
    K2012000250M
    Threaded connection: 3/4"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 250; Piston diameter: 200; Rod: double rod; Piston rod thread: M36 x 2; Magnetic piston: Yes; Effect: double-acting;
    €1,735.55
    Reference:
    K1002000500
    Threaded connection: 3/4"; Piston rod material: Stainless steel; Seal type: NBR; Stroke/mm: 500; Piston diameter: 200; Rod: unilateral; Piston rod thread: M36 x 2; Magnetic piston: No; Effect: double-acting;
    €1,801.31
