Cylinder series K (ISO 6431/ VDMA 24562) D 32mm - 1
Cylinder series K (ISO 6431/ VDMA 24562) D 32mm - 1

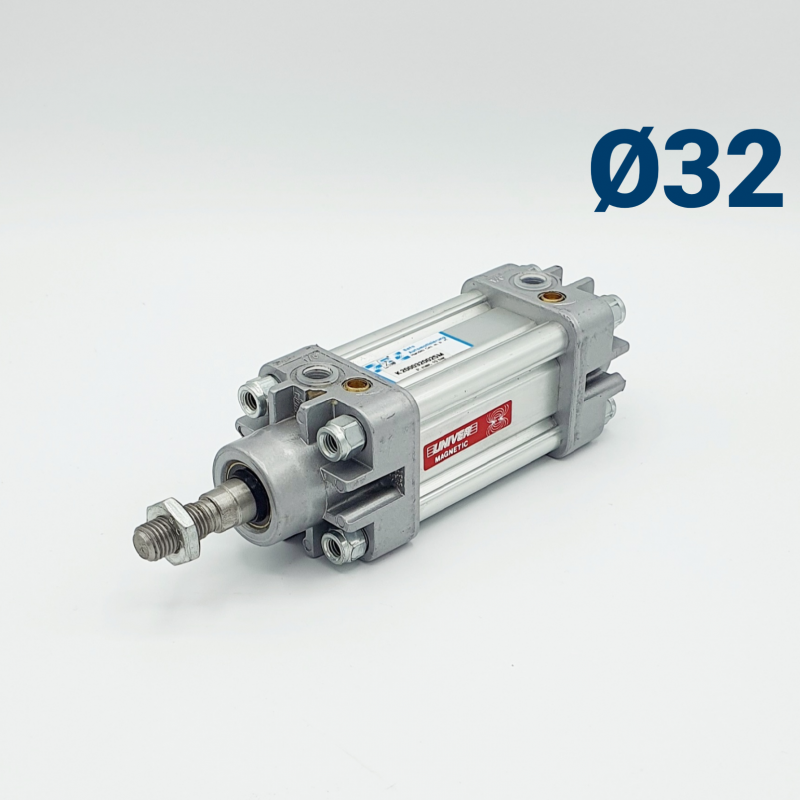

    Cylinder series K (ISO 6431/ VDMA 24562) D 32mm

    €99.41
    Tax excluded
    K2000320010

    SPECIAL STROKES on request!

    help_outlineAsk about product
    Cylinder series K (ISO 6431/ VDMA 24562) D 32mm

    Cylinder series K (ISO 6431/ VDMA 24562) D 32mm

    I accept privacy policy rules

    Piston diameter [mm]:
    • 32
    Stroke [mm]:
    Threaded connection:
    • 1/8"
    Piston rod material:
    • Hard chrome plated
    Seal type:
    • NBR
    Rod:
    • unilateral
    Piston rod thread:
    • M10 x 1,25
    Magnetic piston:
    • Yes
    • No
    Effect:
    • double-acting
    Delivery time 1-2 Workdays

    CHARACTERISTICS
    • Ambient temperature: -20 to 80°C
    • Operating medium: filtered, unlubricated compressed air
    • Operating pressure: 1.5 to 10 bar

    3D-Model
    K2000320010

    Data sheet

    Cylinder cover
    Die-cast aluminum
    Cylinder liner
    Anodized aluminum
    Piston
    Die-cast aluminum
    Piston guide ring
    Acetal resin
    Piston seals
    NBR

    Specific References

    Reference:
    K2000320010
    Threaded connection: 1/8"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 10; Piston diameter: 32; Rod: unilateral; Piston rod thread: M10 x 1,25; Magnetic piston: No; Effect: double-acting;
    €99.41
    Reference:
    K2000320010M
    Threaded connection: 1/8"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 10; Piston diameter: 32; Rod: unilateral; Piston rod thread: M10 x 1,25; Magnetic piston: Yes; Effect: double-acting;
    €106.76
    Reference:
    K2000320015
    Threaded connection: 1/8"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 15; Piston diameter: 32; Rod: unilateral; Piston rod thread: M10 x 1,25; Magnetic piston: No; Effect: double-acting;
    €99.41
    Reference:
    K2000320020
    Threaded connection: 1/8"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 20; Piston diameter: 32; Rod: unilateral; Piston rod thread: M10 x 1,25; Magnetic piston: No; Effect: double-acting;
    €101.36
    Reference:
    K2000320020M
    Threaded connection: 1/8"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 20; Piston diameter: 32; Rod: unilateral; Piston rod thread: M10 x 1,25; Magnetic piston: Yes; Effect: double-acting;
    €106.76
    Reference:
    K2000320024
    Threaded connection: 1/8"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 24; Piston diameter: 32; Rod: unilateral; Piston rod thread: M10 x 1,25; Magnetic piston: No; Effect: double-acting;
    €101.36
    Reference:
    K2000320025
    Threaded connection: 1/8"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 25; Piston diameter: 32; Rod: unilateral; Piston rod thread: M10 x 1,25; Magnetic piston: No; Effect: double-acting;
    €101.36
    Reference:
    K2000320025M
    Threaded connection: 1/8"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 25; Piston diameter: 32; Rod: unilateral; Piston rod thread: M10 x 1,25; Magnetic piston: Yes; Effect: double-acting;
    €108.44
    Reference:
    K2000320026
    Threaded connection: 1/8"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 26; Piston diameter: 32; Rod: unilateral; Piston rod thread: M10 x 1,25; Magnetic piston: No; Effect: double-acting;
    €101.36
    Reference:
    K2000320030
    Threaded connection: 1/8"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 30; Piston diameter: 32; Rod: unilateral; Piston rod thread: M10 x 1,25; Magnetic piston: No; Effect: double-acting;
    €103.03
    Reference:
    K2000320030M
    Threaded connection: 1/8"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 30; Piston diameter: 32; Rod: unilateral; Piston rod thread: M10 x 1,25; Magnetic piston: Yes; Effect: double-acting;
    €111.28
    Reference:
    K2000320035
    Threaded connection: 1/8"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 35; Piston diameter: 32; Rod: unilateral; Piston rod thread: M10 x 1,25; Magnetic piston: No; Effect: double-acting;
    €103.03
    Reference:
    K2000320040
    Threaded connection: 1/8"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 40; Piston diameter: 32; Rod: unilateral; Piston rod thread: M10 x 1,25; Magnetic piston: No; Effect: double-acting;
    €103.03
    Reference:
    K2000320040M
    Threaded connection: 1/8"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 40; Piston diameter: 32; Rod: unilateral; Piston rod thread: M10 x 1,25; Magnetic piston: Yes; Effect: double-acting;
    €111.68
    Reference:
    K2000320045
    Threaded connection: 1/8"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 45; Piston diameter: 32; Rod: unilateral; Piston rod thread: M10 x 1,25; Magnetic piston: No; Effect: double-acting;
    €103.91
    Reference:
    K2000320045M
    Threaded connection: 1/8"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 45; Piston diameter: 32; Rod: unilateral; Piston rod thread: M10 x 1,25; Magnetic piston: Yes; Effect: double-acting;
    €111.68
    Reference:
    K2000320050
    Threaded connection: 1/8"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 50; Piston diameter: 32; Rod: unilateral; Piston rod thread: M10 x 1,25; Magnetic piston: No; Effect: double-acting;
    €103.92
    Reference:
    K2000320050M
    Threaded connection: 1/8"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 50; Piston diameter: 32; Rod: unilateral; Piston rod thread: M10 x 1,25; Magnetic piston: Yes; Effect: double-acting;
    €111.68
    Reference:
    K2000320055
    Threaded connection: 1/8"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 55; Piston diameter: 32; Rod: unilateral; Piston rod thread: M10 x 1,25; Magnetic piston: No; Effect: double-acting;
    €105.42
    Reference:
    K2000320056M
    Threaded connection: 1/8"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 56; Piston diameter: 32; Rod: unilateral; Piston rod thread: M10 x 1,25; Magnetic piston: Yes; Effect: double-acting;
    €112.17
    Reference:
    K2000320060
    Threaded connection: 1/8"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 60; Piston diameter: 32; Rod: unilateral; Piston rod thread: M10 x 1,25; Magnetic piston: No; Effect: double-acting;
    €105.42
    Reference:
    K2000320060M
    Threaded connection: 1/8"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 60; Piston diameter: 32; Rod: unilateral; Piston rod thread: M10 x 1,25; Magnetic piston: Yes; Effect: double-acting;
    €112.17
    Reference:
    K2000320070
    Threaded connection: 1/8"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 70; Piston diameter: 32; Rod: unilateral; Piston rod thread: M10 x 1,25; Magnetic piston: No; Effect: double-acting;
    €107.17
    Reference:
    K2000320070M
    Threaded connection: 1/8"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 70; Piston diameter: 32; Rod: unilateral; Piston rod thread: M10 x 1,25; Magnetic piston: Yes; Effect: double-acting;
    €114.54
    Reference:
    K2000320075
    Threaded connection: 1/8"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 75; Piston diameter: 32; Rod: unilateral; Piston rod thread: M10 x 1,25; Magnetic piston: No; Effect: double-acting;
    €107.17
    Reference:
    K2000320075M
    Threaded connection: 1/8"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 75; Piston diameter: 32; Rod: unilateral; Piston rod thread: M10 x 1,25; Magnetic piston: Yes; Effect: double-acting;
    €114.54
    Reference:
    K2000320080
    Threaded connection: 1/8"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 80; Piston diameter: 32; Rod: unilateral; Piston rod thread: M10 x 1,25; Magnetic piston: No; Effect: double-acting;
    €109.91
    Reference:
    K2000320080M
    Threaded connection: 1/8"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 80; Piston diameter: 32; Rod: unilateral; Piston rod thread: M10 x 1,25; Magnetic piston: Yes; Effect: double-acting;
    €117.67
    Reference:
    K2000320100
    Threaded connection: 1/8"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 100; Piston diameter: 32; Rod: unilateral; Piston rod thread: M10 x 1,25; Magnetic piston: No; Effect: double-acting;
    €109.91
    Reference:
    K2000320100M
    Threaded connection: 1/8"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 100; Piston diameter: 32; Rod: unilateral; Piston rod thread: M10 x 1,25; Magnetic piston: Yes; Effect: double-acting;
    €117.67
    Reference:
    K2000320110M
    Threaded connection: 1/8"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 110; Piston diameter: 32; Rod: unilateral; Piston rod thread: M10 x 1,25; Magnetic piston: Yes; Effect: double-acting;
    €118.18
    Reference:
    K2000320115
    Threaded connection: 1/8"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 115; Piston diameter: 32; Rod: unilateral; Piston rod thread: M10 x 1,25; Magnetic piston: No; Effect: double-acting;
    €113.16
    Reference:
    K2000320120
    Threaded connection: 1/8"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 120; Piston diameter: 32; Rod: unilateral; Piston rod thread: M10 x 1,25; Magnetic piston: No; Effect: double-acting;
    €113.16
    Reference:
    K2000320120M
    Threaded connection: 1/8"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 120; Piston diameter: 32; Rod: unilateral; Piston rod thread: M10 x 1,25; Magnetic piston: Yes; Effect: double-acting;
    €119.54
    Reference:
    K2000320125
    Threaded connection: 1/8"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 125; Piston diameter: 32; Rod: unilateral; Piston rod thread: M10 x 1,25; Magnetic piston: No; Effect: double-acting;
    €113.16
    Reference:
    K2000320125M
    Threaded connection: 1/8"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 125; Piston diameter: 32; Rod: unilateral; Piston rod thread: M10 x 1,25; Magnetic piston: Yes; Effect: double-acting;
    €120.43
    Reference:
    K2000320130
    Threaded connection: 1/8"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 130; Piston diameter: 32; Rod: unilateral; Piston rod thread: M10 x 1,25; Magnetic piston: No; Effect: double-acting;
    €113.55
    Reference:
    K2000320135
    Threaded connection: 1/8"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 135; Piston diameter: 32; Rod: unilateral; Piston rod thread: M10 x 1,25; Magnetic piston: No; Effect: double-acting;
    €116.32
    Reference:
    K2000320135M
    Threaded connection: 1/8"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 135; Piston diameter: 32; Rod: unilateral; Piston rod thread: M10 x 1,25; Magnetic piston: Yes; Effect: double-acting;
    €123.53
    Reference:
    K2000320140
    Threaded connection: 1/8"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 140; Piston diameter: 32; Rod: unilateral; Piston rod thread: M10 x 1,25; Magnetic piston: No; Effect: double-acting;
    €116.32
    Reference:
    K2000320140M
    Threaded connection: 1/8"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 140; Piston diameter: 32; Rod: unilateral; Piston rod thread: M10 x 1,25; Magnetic piston: Yes; Effect: double-acting;
    €123.53
    Reference:
    K2000320150
    Threaded connection: 1/8"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 150; Piston diameter: 32; Rod: unilateral; Piston rod thread: M10 x 1,25; Magnetic piston: No; Effect: double-acting;
    €115.93
    Reference:
    K2000320150M
    Threaded connection: 1/8"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 150; Piston diameter: 32; Rod: unilateral; Piston rod thread: M10 x 1,25; Magnetic piston: Yes; Effect: double-acting;
    €123.53
    Reference:
    K2000320160
    Threaded connection: 1/8"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 160; Piston diameter: 32; Rod: unilateral; Piston rod thread: M10 x 1,25; Magnetic piston: No; Effect: double-acting;
    €118.12
    Reference:
    K2000320160M
    Threaded connection: 1/8"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 160; Piston diameter: 32; Rod: unilateral; Piston rod thread: M10 x 1,25; Magnetic piston: Yes; Effect: double-acting;
    €125.08
    Reference:
    K2000320161M
    Threaded connection: 1/8"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 161; Piston diameter: 32; Rod: unilateral; Piston rod thread: M10 x 1,25; Magnetic piston: Yes; Effect: double-acting;
    €125.73
    Reference:
    K2000320165M
    Threaded connection: 1/8"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 165; Piston diameter: 32; Rod: unilateral; Piston rod thread: M10 x 1,25; Magnetic piston: Yes; Effect: double-acting;
    €126.48
    Reference:
    K2000320170
    Threaded connection: 1/8"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 170; Piston diameter: 32; Rod: unilateral; Piston rod thread: M10 x 1,25; Magnetic piston: No; Effect: double-acting;
    €118.76
    Reference:
    K2000320170M
    Threaded connection: 1/8"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 170; Piston diameter: 32; Rod: unilateral; Piston rod thread: M10 x 1,25; Magnetic piston: Yes; Effect: double-acting;
    €127.54
    Reference:
    K2000320175
    Threaded connection: 1/8"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 175; Piston diameter: 32; Rod: unilateral; Piston rod thread: M10 x 1,25; Magnetic piston: No; Effect: double-acting;
    €118.76
    Reference:
    K2000320180
    Threaded connection: 1/8"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 180; Piston diameter: 32; Rod: unilateral; Piston rod thread: M10 x 1,25; Magnetic piston: No; Effect: double-acting;
    €119.92
    Reference:
    K2000320180M
    Threaded connection: 1/8"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 180; Piston diameter: 32; Rod: unilateral; Piston rod thread: M10 x 1,25; Magnetic piston: Yes; Effect: double-acting;
    €128.56
    Reference:
    K2000320200
    Threaded connection: 1/8"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 200; Piston diameter: 32; Rod: unilateral; Piston rod thread: M10 x 1,25; Magnetic piston: No; Effect: double-acting;
    €121.97
    Reference:
    K2000320200M
    Threaded connection: 1/8"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 200; Piston diameter: 32; Rod: unilateral; Piston rod thread: M10 x 1,25; Magnetic piston: Yes; Effect: double-acting;
    €130.23
    Reference:
    K2000320215
    Threaded connection: 1/8"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 215; Piston diameter: 32; Rod: unilateral; Piston rod thread: M10 x 1,25; Magnetic piston: No; Effect: double-acting;
    €124.94
    Reference:
    K2000320220
    Threaded connection: 1/8"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 220; Piston diameter: 32; Rod: unilateral; Piston rod thread: M10 x 1,25; Magnetic piston: No; Effect: double-acting;
    €124.94
    Reference:
    K2000320220M
    Threaded connection: 1/8"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 220; Piston diameter: 32; Rod: unilateral; Piston rod thread: M10 x 1,25; Magnetic piston: Yes; Effect: double-acting;
    €131.47
    Reference:
    K2000320225M
    Threaded connection: 1/8"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 225; Piston diameter: 32; Rod: unilateral; Piston rod thread: M10 x 1,25; Magnetic piston: Yes; Effect: double-acting;
    €132.65
    Reference:
    K2000320240
    Threaded connection: 1/8"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 240; Piston diameter: 32; Rod: unilateral; Piston rod thread: M10 x 1,25; Magnetic piston: No; Effect: double-acting;
    €126.10
    Reference:
    K2000320240M
    Threaded connection: 1/8"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 240; Piston diameter: 32; Rod: unilateral; Piston rod thread: M10 x 1,25; Magnetic piston: Yes; Effect: double-acting;
    €135.38
    Reference:
    K2000320250
    Threaded connection: 1/8"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 250; Piston diameter: 32; Rod: unilateral; Piston rod thread: M10 x 1,25; Magnetic piston: No; Effect: double-acting;
    €127.92
    Reference:
    K2000320250M
    Threaded connection: 1/8"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 250; Piston diameter: 32; Rod: unilateral; Piston rod thread: M10 x 1,25; Magnetic piston: Yes; Effect: double-acting;
    €136.71
    Reference:
    K2000320260M
    Threaded connection: 1/8"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 260; Piston diameter: 32; Rod: unilateral; Piston rod thread: M10 x 1,25; Magnetic piston: Yes; Effect: double-acting;
    €141.84
    Reference:
    K2000320270
    Threaded connection: 1/8"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 270; Piston diameter: 32; Rod: unilateral; Piston rod thread: M10 x 1,25; Magnetic piston: No; Effect: double-acting;
    €130.23
    Reference:
    K2000320280M
    Threaded connection: 1/8"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 280; Piston diameter: 32; Rod: unilateral; Piston rod thread: M10 x 1,25; Magnetic piston: Yes; Effect: double-acting;
    €141.84
    Reference:
    K2000320300
    Threaded connection: 1/8"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 300; Piston diameter: 32; Rod: unilateral; Piston rod thread: M10 x 1,25; Magnetic piston: No; Effect: double-acting;
    €134.09
    Reference:
    K2000320300M
    Threaded connection: 1/8"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 300; Piston diameter: 32; Rod: unilateral; Piston rod thread: M10 x 1,25; Magnetic piston: Yes; Effect: double-acting;
    €141.84
    Reference:
    K2000320320
    Threaded connection: 1/8"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 320; Piston diameter: 32; Rod: unilateral; Piston rod thread: M10 x 1,25; Magnetic piston: No; Effect: double-acting;
    €136.69
    Reference:
    K2000320320M
    Threaded connection: 1/8"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 320; Piston diameter: 32; Rod: unilateral; Piston rod thread: M10 x 1,25; Magnetic piston: Yes; Effect: double-acting;
    €144.41
    Reference:
    K2000320330M
    Threaded connection: 1/8"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 330; Piston diameter: 32; Rod: unilateral; Piston rod thread: M10 x 1,25; Magnetic piston: Yes; Effect: double-acting;
    €146.99
    Reference:
    K2000320350
    Threaded connection: 1/8"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 350; Piston diameter: 32; Rod: unilateral; Piston rod thread: M10 x 1,25; Magnetic piston: No; Effect: double-acting;
    €140.55
    Reference:
    K2000320350M
    Threaded connection: 1/8"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 350; Piston diameter: 32; Rod: unilateral; Piston rod thread: M10 x 1,25; Magnetic piston: Yes; Effect: double-acting;
    €148.27
    Reference:
    K2000320360M
    Threaded connection: 1/8"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 360; Piston diameter: 32; Rod: unilateral; Piston rod thread: M10 x 1,25; Magnetic piston: Yes; Effect: double-acting;
    €157.31
    Reference:
    K2000320400
    Threaded connection: 1/8"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 400; Piston diameter: 32; Rod: unilateral; Piston rod thread: M10 x 1,25; Magnetic piston: No; Effect: double-acting;
    €145.71
    Reference:
    K2000320400M
    Threaded connection: 1/8"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 400; Piston diameter: 32; Rod: unilateral; Piston rod thread: M10 x 1,25; Magnetic piston: Yes; Effect: double-acting;
    €157.31
    Reference:
    K2000320425
    Threaded connection: 1/8"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 425; Piston diameter: 32; Rod: unilateral; Piston rod thread: M10 x 1,25; Magnetic piston: No; Effect: double-acting;
    €152.16
    Reference:
    K2000320450
    Threaded connection: 1/8"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 450; Piston diameter: 32; Rod: unilateral; Piston rod thread: M10 x 1,25; Magnetic piston: No; Effect: double-acting;
    €152.16
    Reference:
    K2000320450M
    Threaded connection: 1/8"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 450; Piston diameter: 32; Rod: unilateral; Piston rod thread: M10 x 1,25; Magnetic piston: Yes; Effect: double-acting;
    €162.47
    Reference:
    K2000320480M
    Threaded connection: 1/8"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 480; Piston diameter: 32; Rod: unilateral; Piston rod thread: M10 x 1,25; Magnetic piston: Yes; Effect: double-acting;
    €166.34
    Reference:
    K2000320500
    Threaded connection: 1/8"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 500; Piston diameter: 32; Rod: unilateral; Piston rod thread: M10 x 1,25; Magnetic piston: No; Effect: double-acting;
    €159.88
    Reference:
    K2000320500M
    Threaded connection: 1/8"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 500; Piston diameter: 32; Rod: unilateral; Piston rod thread: M10 x 1,25; Magnetic piston: Yes; Effect: double-acting;
    €168.92
    Reference:
    K2000320550
    Threaded connection: 1/8"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 550; Piston diameter: 32; Rod: unilateral; Piston rod thread: M10 x 1,25; Magnetic piston: No; Effect: double-acting;
    €168.92
    Reference:
    K2000320600
    Threaded connection: 1/8"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 600; Piston diameter: 32; Rod: unilateral; Piston rod thread: M10 x 1,25; Magnetic piston: No; Effect: double-acting;
    €172.78
    Reference:
    K2000320600M
    Threaded connection: 1/8"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 600; Piston diameter: 32; Rod: unilateral; Piston rod thread: M10 x 1,25; Magnetic piston: Yes; Effect: double-acting;
    €177.93
    Reference:
    K2000320700
    Threaded connection: 1/8"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 700; Piston diameter: 32; Rod: unilateral; Piston rod thread: M10 x 1,25; Magnetic piston: No; Effect: double-acting;
    €184.39
    Reference:
    K2000320700M
    Threaded connection: 1/8"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 700; Piston diameter: 32; Rod: unilateral; Piston rod thread: M10 x 1,25; Magnetic piston: Yes; Effect: double-acting;
    €189.55
    Reference:
    K2000320750
    Threaded connection: 1/8"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 750; Piston diameter: 32; Rod: unilateral; Piston rod thread: M10 x 1,25; Magnetic piston: No; Effect: double-acting;
    €193.43
    Reference:
    K2000320760
    Threaded connection: 1/8"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 760; Piston diameter: 32; Rod: unilateral; Piston rod thread: M10 x 1,25; Magnetic piston: No; Effect: double-acting;
    €195.99
    Reference:
    K2000320800
    Threaded connection: 1/8"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 800; Piston diameter: 32; Rod: unilateral; Piston rod thread: M10 x 1,25; Magnetic piston: No; Effect: double-acting;
    €195.99
    Reference:
    K2000320800M
    Threaded connection: 1/8"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 800; Piston diameter: 32; Rod: unilateral; Piston rod thread: M10 x 1,25; Magnetic piston: Yes; Effect: double-acting;
    €205.01
    Reference:
    K2000320850M
    Threaded connection: 1/8"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 850; Piston diameter: 32; Rod: unilateral; Piston rod thread: M10 x 1,25; Magnetic piston: Yes; Effect: double-acting;
    €205.10
    Reference:
    K2000320900
    Threaded connection: 1/8"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 900; Piston diameter: 32; Rod: unilateral; Piston rod thread: M10 x 1,25; Magnetic piston: No; Effect: double-acting;
    €211.47
    Reference:
    K2000321000
    Threaded connection: 1/8"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 1000; Piston diameter: 32; Rod: unilateral; Piston rod thread: M10 x 1,25; Magnetic piston: No; Effect: double-acting;
    €223.07
    Reference:
    K2000321000M
    Threaded connection: 1/8"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 1000; Piston diameter: 32; Rod: unilateral; Piston rod thread: M10 x 1,25; Magnetic piston: Yes; Effect: double-acting;
    €226.95
    Reference:
    K2000321050
    Threaded connection: 1/8"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 1050; Piston diameter: 32; Rod: unilateral; Piston rod thread: M10 x 1,25; Magnetic piston: No; Effect: double-acting;
    €237.26
    Reference:
    K2000321200
    Threaded connection: 1/8"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 1200; Piston diameter: 32; Rod: unilateral; Piston rod thread: M10 x 1,25; Magnetic piston: No; Effect: double-acting;
    €244.99
    Reference:
    K2000321200M
    Threaded connection: 1/8"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 1200; Piston diameter: 32; Rod: unilateral; Piston rod thread: M10 x 1,25; Magnetic piston: Yes; Effect: double-acting;
    €248.86
    Reference:
    K2000321250
    Threaded connection: 1/8"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 1250; Piston diameter: 32; Rod: unilateral; Piston rod thread: M10 x 1,25; Magnetic piston: No; Effect: double-acting;
    €247.56
    Reference:
    K2000321250M
    Threaded connection: 1/8"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 1250; Piston diameter: 32; Rod: unilateral; Piston rod thread: M10 x 1,25; Magnetic piston: Yes; Effect: double-acting;
    €254.02
    Reference:
    K2000321300
    Threaded connection: 1/8"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 1300; Piston diameter: 32; Rod: unilateral; Piston rod thread: M10 x 1,25; Magnetic piston: No; Effect: double-acting;
    €254.02
    Reference:
    K2000321500
    Threaded connection: 1/8"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 1500; Piston diameter: 32; Rod: unilateral; Piston rod thread: M10 x 1,25; Magnetic piston: No; Effect: double-acting;
    €273.36
    Reference:
    K2000321600
    Threaded connection: 1/8"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 1600; Piston diameter: 32; Rod: unilateral; Piston rod thread: M10 x 1,25; Magnetic piston: No; Effect: double-acting;
    €294.00
    Reference:
    K2000321800
    Threaded connection: 1/8"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 1800; Piston diameter: 32; Rod: unilateral; Piston rod thread: M10 x 1,25; Magnetic piston: No; Effect: double-acting;
    €304.29
    Reference:
    K2010320028
    Threaded connection: 1/8"; Piston rod material: Hard chrome plated; Seal type: NBR; Stroke/mm: 28; Piston diameter: 32; Rod: double rod; Piston rod thread: M10 x 1,25; Magnetic piston: No; Effect: double-acting;
    €167.63

    Additional products
