ISO-Cylinder Ø50mm / 80mm (K1000500080) - 1
ISO-Cylinder Ø50mm / 80mm (K1000500080) - 1

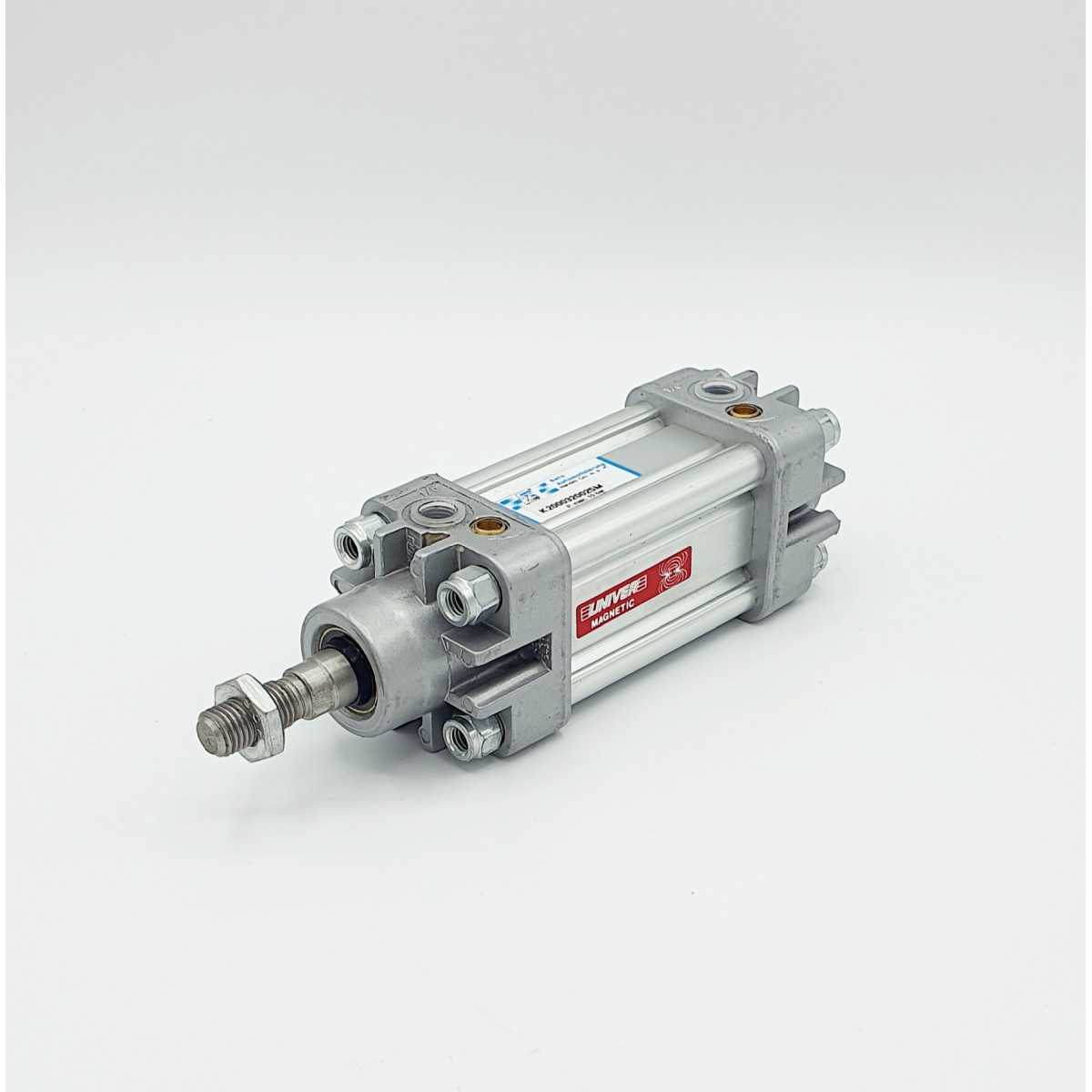

    ISO-Cylinder Ø50mm / 80mm (K1000500080)

    €172.78
    Tax excluded
    K1000500080

    ISO 6431/ VDMA 24562

    help_outlineAsk about product
    ISO-Cylinder Ø50mm / 80mm (K1000500080)

    ISO-Cylinder Ø50mm / 80mm (K1000500080)

    I accept privacy policy rules

    Piston diameter [mm]:
    • 50
    Stroke [mm]:
    Threaded connection:
    • 1/4"
    Piston rod material:
    • Stainless steel
    Seal type:
    • NBR
    End position damping:
    • Adjustable
    Rod:
    • unilateral
    Piston rod thread:
    • M16 x 1,5
    Magnetic piston:
    • No
    Standard:
    • ISO 15552 / ISO 6431
    Anti-rotation:
    • No
    Effect:
    • double-acting
    Cylinder series:
    • K
    Not in stock - available within 24 hours

    UNIVER air cylinders according to ISO 6431 and VDMA 24562 incorporate improvements resulting from technological development and are able to satisfy even the most demanding customers.
    An important feature of the cylinders is their oil-free operation, which allows them to be used in many industrial areas while respecting the environment. The robust construction and the components used ensure high performance and long service life.

    Operating pressure: 1.5 ÷ 10 bar
    Ambient temperature: -20 ÷ +80°C
    Medium: filtered, lubricated or unlubricated compressed air
    Cylinder barrel made of aluminium, anodized inside and out
    and piston rod made of stainless steel.
    Cylinder diameter: KD 32 ÷ 125 series Cylinder barrel profile
    made of aluminum with profile for recessed sensors,
    magnetic version standard.
    Series K 32 ÷ 200 Cylinder barrel with
    round aluminum profile and steel tie rods,
    magnetic version on request.

    This cylinder series is manufactured in our in-house production facility and can be customized to your individual requirements. Any special versions that are not in the store can be requested.

    K1000500080

    Specific References

    Reference:
    K1000500080
    Threaded connection: 1/4"; Piston rod material: Stainless steel; Seal type: NBR; End position damping: Adjustable; Stroke/mm: 80; Piston diameter: 50; Rod: unilateral; Piston rod thread: M16 x 1,5; Magnetic piston: No; Standard: ISO 15552 / ISO 6431; Anti-rotation: No; Effect: double-acting; Cylinder series: K;
