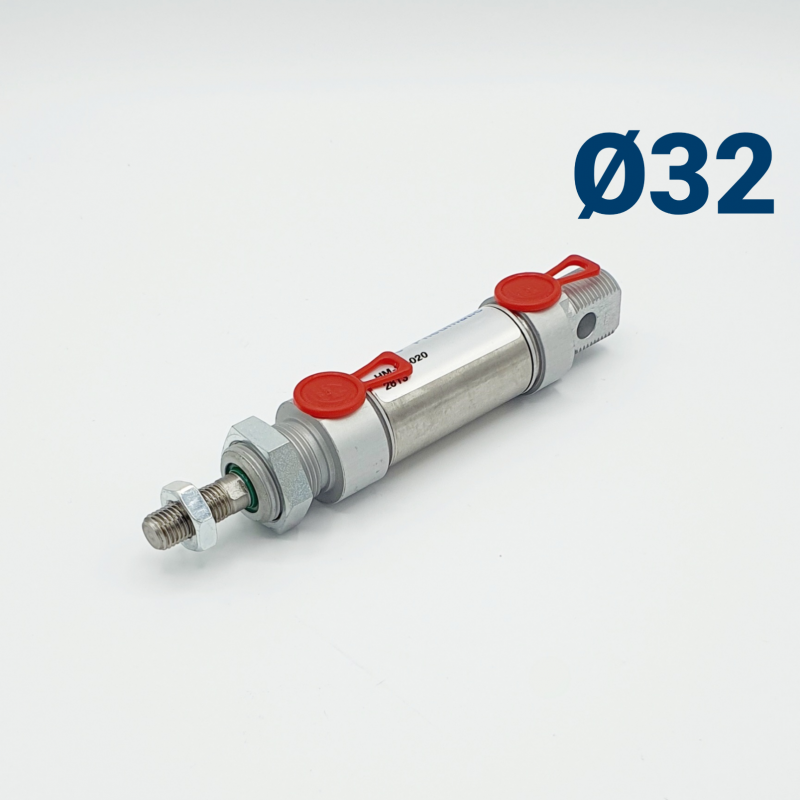

Cylinder series HM (ISO 6432) D 32mm

€143.55

Tax excluded

Reference: HM-32-010

SPECIAL STROKES on request!

Round cylinder with magnetic piston and damping discs in the end positions or with adjustable end position damping, piston diameter 8-40 mm

CHARACTERISTICS

Ambient temperature: -30 to 80°C
Operating medium: filtered, unlubricated compressed air
Operating pressure: 1 to 10 bar

Reference HM-32-010

Data sheet

Cylinder cover: Anodized aluminum
Cylinder liner: Stainless steel
Piston seals: NBR

Specific References

Reference:
HM-32-010

Threaded connection: 1/8"; Piston rod material: Stainless steel; Seal type: NBR; End position damping: not adjustable; Stroke/mm: 10; Piston diameter: 32; Piston rod thread: M10; Magnetic piston: Yes; Effect: double-acting;

€143.55

Reference:
HM-32-040

Threaded connection: 1/8"; Piston rod material: Stainless steel; Seal type: NBR; End position damping: not adjustable; Stroke/mm: 40; Piston diameter: 32; Rod: unilateral; Piston rod thread: M10; Magnetic piston: Yes; Effect: double-acting;

€138.09

Reference:
HM-32-050

Threaded connection: 1/8"; Piston rod material: Stainless steel; Seal type: NBR; End position damping: not adjustable; Stroke/mm: 50; Piston diameter: 32; Rod: unilateral; Piston rod thread: M10; Effect: double-acting;

€138.09

Reference:
HM-32-080

Threaded connection: 1/8"; Piston rod material: Stainless steel; Seal type: NBR; End position damping: not adjustable; Stroke/mm: 80; Piston diameter: 32; Rod: unilateral; Piston rod thread: M10; Magnetic piston: Yes; Effect: double-acting;

€144.97

Reference:
HM-32-100

Threaded connection: 1/8"; Piston rod material: Stainless steel; Seal type: NBR; End position damping: not adjustable; Stroke/mm: 100; Piston diameter: 32; Rod: unilateral; Piston rod thread: M10; Magnetic piston: Yes; Effect: double-acting;

€148.30

Reference:
HM-32-125

Threaded connection: 1/8"; Piston rod material: Stainless steel; Seal type: NBR; End position damping: not adjustable; Stroke/mm: 125; Piston diameter: 32; Rod: unilateral; Piston rod thread: M10; Magnetic piston: Yes; Effect: double-acting;

€153.07

Reference:
HM-32-160

Threaded connection: 1/8"; Piston rod material: Stainless steel; Seal type: NBR; End position damping: not adjustable; Stroke/mm: 160; Piston diameter: 32; Rod: unilateral; Piston rod thread: M10; Magnetic piston: Yes; Effect: double-acting;

€158.44

Reference:
HM-32-200

Threaded connection: 1/8"; Piston rod material: Stainless steel; Seal type: NBR; End position damping: not adjustable; Stroke/mm: 200; Piston diameter: 32; Rod: unilateral; Piston rod thread: M10; Magnetic piston: Yes; Effect: double-acting;

€162.45

Reference:
HM-32-250

Threaded connection: 1/8"; Piston rod material: Stainless steel; Seal type: NBR; Stroke/mm: 250; Piston diameter: 32; Rod: unilateral; Piston rod thread: M10;

€181.76

Reference:
HM-32-320

Threaded connection: 1/8"; Piston rod material: Stainless steel; Seal type: NBR; End position damping: not adjustable; Stroke/mm: 320; Piston diameter: 32; Rod: unilateral; Piston rod thread: M10; Magnetic piston: Yes; Effect: double-acting;

€187.96

Reference:
HM-32-400

Threaded connection: 1/8"; Piston rod material: Stainless steel; Seal type: NBR; Stroke/mm: 400; Piston diameter: 32; Rod: unilateral; Piston rod thread: M10; Effect: double-acting;

€228.30

Reference:
HM-32-500

Threaded connection: 1/8"; Piston rod material: Stainless steel; Seal type: NBR; End position damping: not adjustable; Stroke/mm: 500; Piston diameter: 32; Rod: unilateral; Piston rod thread: M10; Magnetic piston: Yes; Effect: double-acting;

€249.35
