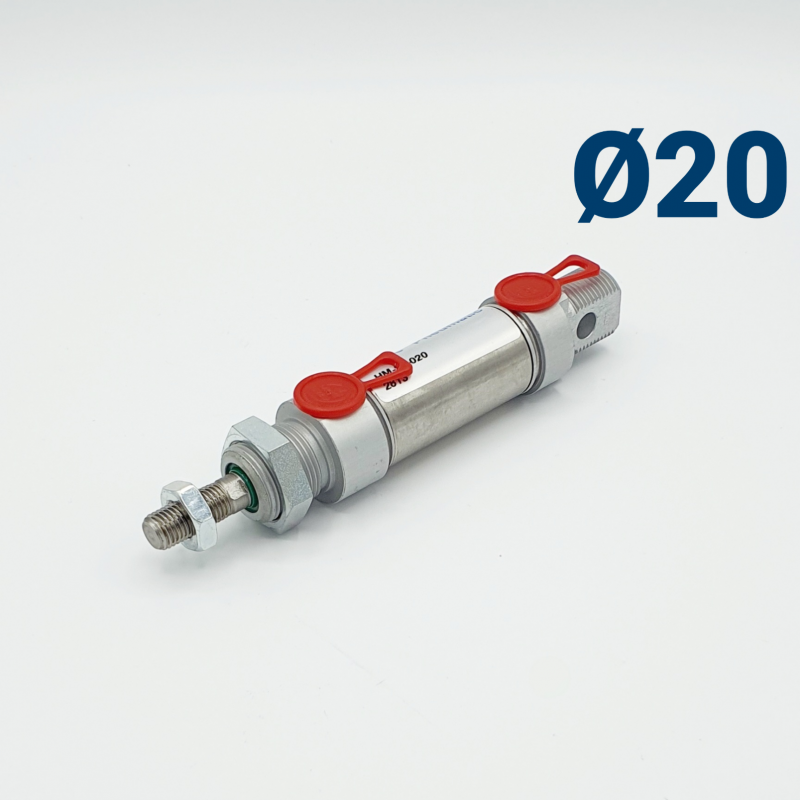

Cylinder series HM (ISO 6432) D 20mm

€46.98

Tax excluded

Round cylinder with magnetic piston and damping discs in the end positions or with adjustable end position damping, piston diameter 8-40 mm

CHARACTERISTICS

Ambient temperature: -30 to 80°C
Operating medium: filtered, unlubricated compressed air
Operating pressure: 1 to 10 bar

Reference HM-20-010

Data sheet

Cylinder cover: Anodized aluminum
Cylinder liner: Stainless steel
Piston seals: NBR

Specific References

Reference:
HM-20-010

Threaded connection: 1/8"; Piston rod material: Stainless steel; Seal type: NBR; End position damping: not adjustable; Stroke/mm: 10; Piston diameter: 20; Rod: unilateral; Piston rod thread: M8 x 1,25; Magnetic piston: Yes; Effect: double-acting;

€46.98

Reference:
HM-20-025

Threaded connection: 1/8"; Piston rod material: Stainless steel; Seal type: NBR; End position damping: not adjustable; Stroke/mm: 25; Piston diameter: 20; Rod: unilateral; Piston rod thread: M8 x 1,25; Magnetic piston: Yes; Effect: double-acting;

€47.36

Reference:
HM-20-040

Threaded connection: 1/8"; Piston rod material: Stainless steel; Seal type: NBR; End position damping: not adjustable; Stroke/mm: 40; Piston diameter: 20; Rod: unilateral; Piston rod thread: M8 x 1,25; Magnetic piston: Yes; Effect: double-acting;

€48.83

Reference:
HM-20-050

Threaded connection: 1/8"; Piston rod material: Stainless steel; Seal type: NBR; End position damping: not adjustable; Stroke/mm: 50; Piston diameter: 20; Rod: unilateral; Piston rod thread: M8 x 1,25; Magnetic piston: Yes; Effect: double-acting;

€49.15

Reference:
HM-20-080

Threaded connection: 1/8"; Piston rod material: Stainless steel; Seal type: NBR; End position damping: not adjustable; Stroke/mm: 80; Piston diameter: 20; Rod: unilateral; Piston rod thread: M8 x 1,25; Magnetic piston: Yes; Effect: double-acting;

€49.65

Reference:
HM-20-100

Threaded connection: 1/8"; Piston rod material: Stainless steel; Seal type: NBR; End position damping: not adjustable; Stroke/mm: 100; Piston diameter: 20; Rod: unilateral; Piston rod thread: M8 x 1,25; Magnetic piston: Yes; Effect: double-acting;

€50.09

Reference:
HM-20-125

Threaded connection: 1/8"; Piston rod material: Stainless steel; Seal type: NBR; End position damping: not adjustable; Stroke/mm: 125; Piston diameter: 20; Rod: unilateral; Piston rod thread: M8 x 1,25; Magnetic piston: Yes; Effect: double-acting;

€51.28

Reference:
HM-20-160

Threaded connection: 1/8"; Piston rod material: Stainless steel; Seal type: NBR; End position damping: not adjustable; Stroke/mm: 160; Piston diameter: 20; Rod: unilateral; Piston rod thread: M8 x 1,25; Magnetic piston: Yes; Effect: double-acting;

€53.24

Reference:
HM-20-200

Threaded connection: 1/8"; Piston rod material: Stainless steel; Seal type: NBR; End position damping: not adjustable; Stroke/mm: 200; Piston diameter: 20; Rod: unilateral; Piston rod thread: M8 x 1,25; Magnetic piston: Yes; Effect: double-acting;

€54.44

Reference:
HM-20-250

Threaded connection: 1/8"; Piston rod material: Stainless steel; Seal type: NBR; End position damping: not adjustable; Stroke/mm: 250; Piston diameter: 20; Rod: unilateral; Piston rod thread: M8 x 1,25; Magnetic piston: Yes; Effect: double-acting;

€59.40

Reference:
HM-20-320

Threaded connection: 1/8"; Piston rod material: Stainless steel; Seal type: NBR; End position damping: not adjustable; Stroke/mm: 320; Piston diameter: 20; Rod: unilateral; Piston rod thread: M8 x 1,25; Magnetic piston: Yes; Effect: double-acting;

€63.33
