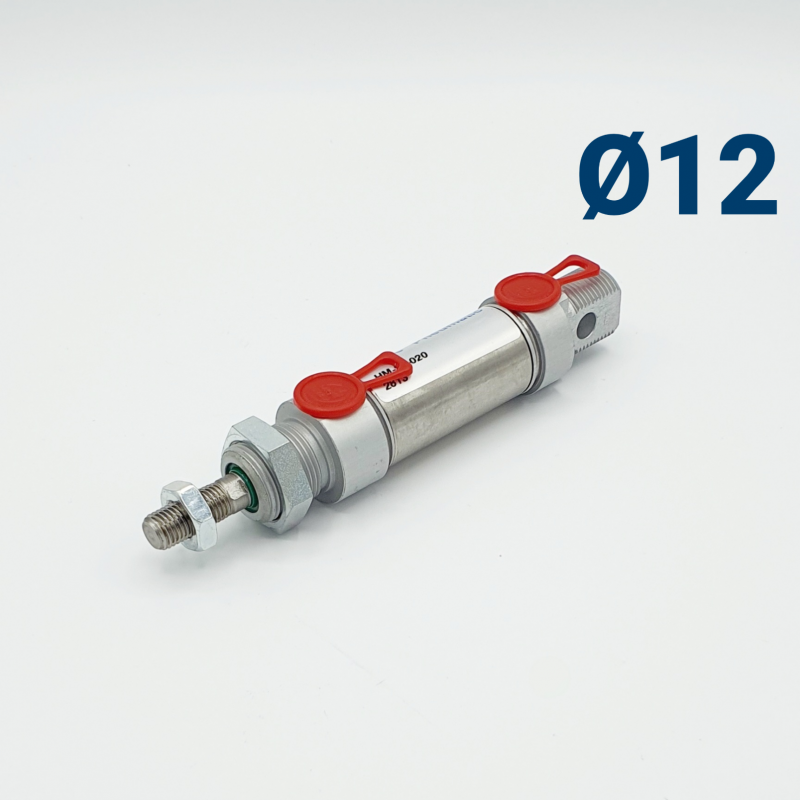

Cylinder series HM (ISO 6432) D 12mm

€40.65

Tax excluded

Round cylinder with magnetic piston and damping discs in the end positions or with adjustable end position damping, piston diameter 8-40 mm

CHARACTERISTICS

Ambient temperature: -30 to 80°C
Operating medium: filtered, unlubricated compressed air
Operating pressure: 1 to 10 bar

Reference HM-12-010

Data sheet

Cylinder cover: Anodized aluminum
Cylinder liner: Stainless steel
Piston seals: NBR

Specific References

Reference:
HM-12-010

Threaded connection: M5; Piston rod material: Stainless steel; Seal type: NBR; End position damping: not adjustable; Stroke/mm: 10; Piston diameter: 12; Rod: unilateral; Piston rod thread: M6 x 1; Magnetic piston: Yes; Effect: double-acting;

€40.65

Reference:
HM-12-025

Threaded connection: M5; Piston rod material: Stainless steel; Seal type: NBR; End position damping: not adjustable; Stroke/mm: 25; Piston diameter: 12; Rod: unilateral; Piston rod thread: M6 x 1; Magnetic piston: Yes; Effect: double-acting;

€40.87

Reference:
HM-12-040

Threaded connection: M5; Piston rod material: Stainless steel; Seal type: NBR; End position damping: not adjustable; Stroke/mm: 40; Piston diameter: 12; Rod: unilateral; Piston rod thread: M6 x 1; Magnetic piston: Yes; Effect: double-acting;

€41.09

Reference:
HM-12-050

Threaded connection: M5; Piston rod material: Stainless steel; Seal type: NBR; End position damping: not adjustable; Stroke/mm: 50; Piston diameter: 12; Rod: unilateral; Piston rod thread: M6 x 1; Magnetic piston: Yes; Effect: double-acting;

€41.41

Reference:
HM-12-080

Threaded connection: M5; Piston rod material: Stainless steel; Seal type: NBR; End position damping: not adjustable; Stroke/mm: 80; Piston diameter: 12; Rod: unilateral; Piston rod thread: M6 x 1; Magnetic piston: Yes; Effect: double-acting;

€42.40

Reference:
HM-12-100

Threaded connection: M5; Piston rod material: Stainless steel; Seal type: NBR; End position damping: not adjustable; Stroke/mm: 100; Piston diameter: 12; Rod: unilateral; Piston rod thread: M6 x 1; Magnetic piston: Yes; Effect: double-acting;

€42.78

Reference:
HM-12-125

Threaded connection: M5; Piston rod material: Stainless steel; Seal type: NBR; End position damping: not adjustable; Stroke/mm: 125; Piston diameter: 12; Rod: unilateral; Piston rod thread: M6 x 1; Magnetic piston: Yes; Effect: double-acting;

€43.16

Reference:
HM-12-160

Threaded connection: M5; Piston rod material: Stainless steel; Seal type: NBR; End position damping: not adjustable; Stroke/mm: 160; Piston diameter: 12; Rod: unilateral; Piston rod thread: M6 x 1; Magnetic piston: Yes; Effect: double-acting;

€44.96

Reference:
HM-12-200

Threaded connection: M5; Piston rod material: Stainless steel; Seal type: NBR; End position damping: not adjustable; Stroke/mm: 200; Piston diameter: 12; Rod: unilateral; Piston rod thread: M6 x 1; Magnetic piston: Yes; Effect: double-acting;

€46.10
