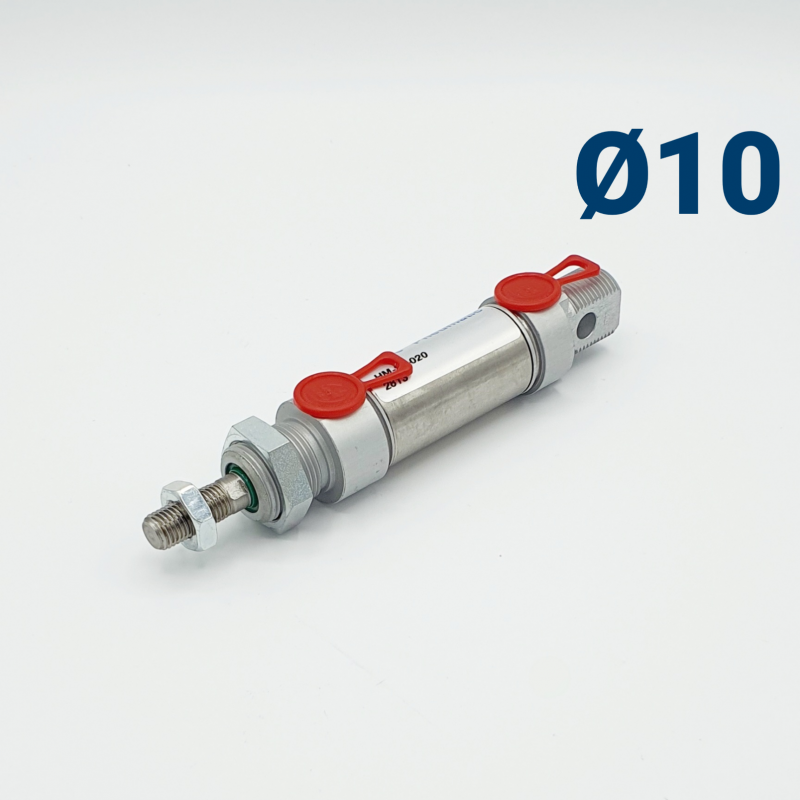

Cylinder series HM (ISO 6432) D 10mm

€40.05

Tax excluded

Reference: HM-10-010

SPECIAL STROKES on request!

Round cylinder with magnetic piston and damping discs in the end positions or with adjustable end position damping, piston diameter 8-40 mm

CHARACTERISTICS

Ambient temperature: -30 to 80°C
Operating medium: filtered, unlubricated compressed air
Operating pressure: 1 to 10 bar

Reference HM-10-010

Data sheet

Cylinder cover: Anodized aluminum
Cylinder liner: Stainless steel
Piston seals: NBR

Specific References

Reference:
HM-10-010

Threaded connection: M5; Piston rod material: Stainless steel; Seal type: NBR; End position damping: not adjustable; Stroke/mm: 10; Piston diameter: 10; Rod: unilateral; Piston rod thread: M4 x 0.7; Magnetic piston: Yes; Effect: double-acting;

€40.05

Reference:
HM-10-013

Threaded connection: M5; Piston rod material: Stainless steel; Seal type: NBR; End position damping: not adjustable; Stroke/mm: 13; Piston diameter: 10; Rod: unilateral; Piston rod thread: M4 x 0.7; Magnetic piston: Yes; Effect: double-acting;

€45.70

Reference:
HM-10-015

Threaded connection: M5; Piston rod material: Stainless steel; Seal type: NBR; End position damping: not adjustable; Stroke/mm: 15; Piston diameter: 10; Rod: unilateral; Piston rod thread: M4 x 0.7; Magnetic piston: Yes; Effect: double-acting;

€45.76

Reference:
HM-10-025

Threaded connection: M5; Piston rod material: Stainless steel; Seal type: NBR; End position damping: not adjustable; Stroke/mm: 25; Piston diameter: 10; Rod: unilateral; Piston rod thread: M4 x 0.7; Magnetic piston: Yes; Effect: double-acting;

€40.65

Reference:
HM-10-040

Threaded connection: M5; Piston rod material: Stainless steel; Seal type: NBR; End position damping: Adjustable; Stroke/mm: 40; Piston diameter: 10; Rod: unilateral; Piston rod thread: M4 x 0.7; Magnetic piston: Yes; Effect: double-acting;

€40.87

Reference:
HM-10-050

Threaded connection: M5; Piston rod material: Stainless steel; Seal type: NBR; End position damping: Adjustable; Stroke/mm: 50; Piston diameter: 10; Rod: unilateral; Piston rod thread: M4 x 0.7; Magnetic piston: Yes; Effect: double-acting;

€41.09

Reference:
HM-10-080

Threaded connection: M5; Piston rod material: Stainless steel; Seal type: NBR; End position damping: Adjustable; Stroke/mm: 80; Piston diameter: 10; Rod: unilateral; Piston rod thread: M4 x 0.7; Magnetic piston: Yes; Effect: double-acting;

€41.63

Reference:
HM-10-100

Threaded connection: M5; Piston rod material: Stainless steel; Seal type: NBR; End position damping: not adjustable; Stroke/mm: 100; Piston diameter: 10; Rod: unilateral; Piston rod thread: M4 x 0.7; Magnetic piston: Yes; Effect: double-acting;

€41.96
