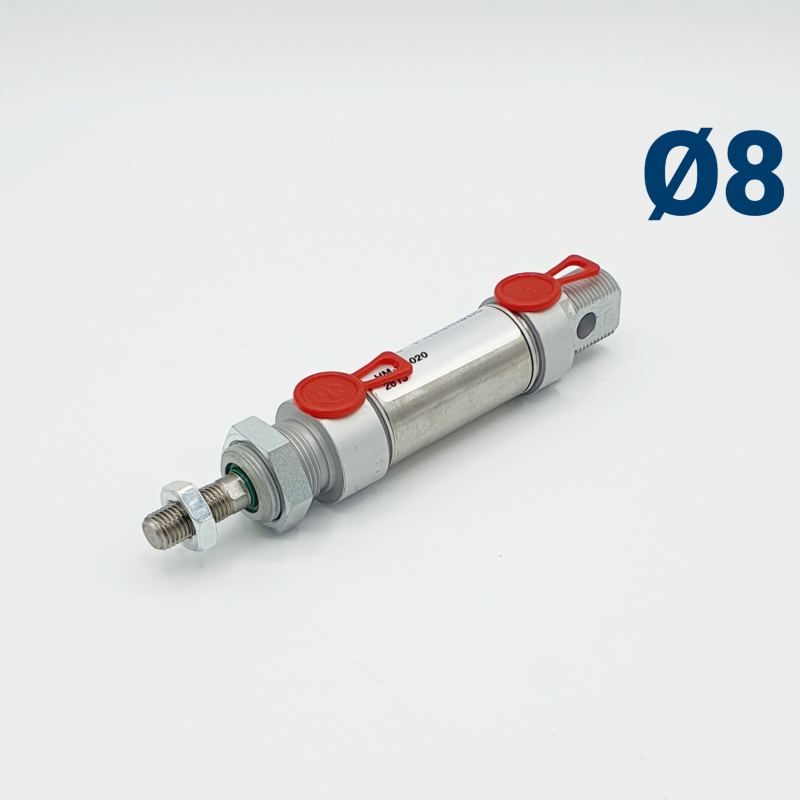

Cylinder series HM (ISO 6432) D 8mm - 1
Cylinder series HM (ISO 6432) D 8mm - 1

    Cylinder series HM (ISO 6432) D 8mm

    €38.10
    Tax excluded
    HM-08-010

    SPECIAL STROKES on request!

    help_outlineAsk about product
    Cylinder series HM (ISO 6432) D 8mm

    Cylinder series HM (ISO 6432) D 8mm

    I accept privacy policy rules

    Piston diameter [mm]:
    • 8
    Stroke [mm]:
    Threaded connection:
    • M5
    Piston rod material:
    • Stainless steel
    Seal type:
    • NBR
    End position damping:
    • not adjustable
    Rod:
    • unilateral
    Piston rod thread:
    • M4 x 0.7
    Magnetic piston:
    • Yes
    Effect:
    • double-acting
    Delivery time 1-2 Workdays

    Round cylinder with magnetic piston and damping discs in the end positions or with adjustable end position damping, piston diameter 8-40 mm

    CHARACTERISTICS
    • Ambient temperature: -30 to 80°C
    • Operating medium: filtered, unlubricated compressed air
    • Operating pressure: 1 to 10 bar

    3D-Model
    HM-08-010

    Data sheet

    Cylinder cover
    Anodized aluminum
    Cylinder liner
    Stainless steel
    Piston seals
    NBR

    Specific References

    Reference:
    HM-08-010
    Threaded connection: M5; Piston rod material: Stainless steel; Seal type: NBR; End position damping: not adjustable; Stroke/mm: 10; Piston diameter: 8; Rod: unilateral; Piston rod thread: M4 x 0.7; Magnetic piston: Yes; Effect: double-acting;
    €38.10
    Reference:
    HM-08-025
    Threaded connection: M5; Piston rod material: Stainless steel; Seal type: NBR; End position damping: not adjustable; Stroke/mm: 25; Piston diameter: 8; Rod: unilateral; Piston rod thread: M4 x 0.7; Magnetic piston: Yes; Effect: double-acting;
    €38.37
    Reference:
    HM-08-040
    Threaded connection: M5; Piston rod material: Stainless steel; Seal type: NBR; End position damping: not adjustable; Stroke/mm: 40; Piston diameter: 8; Rod: unilateral; Piston rod thread: M4 x 0.7; Magnetic piston: Yes; Effect: double-acting;
    €38.80
    Reference:
    HM-08-050
    Threaded connection: M5; Piston rod material: Stainless steel; Seal type: NBR; End position damping: not adjustable; Stroke/mm: 50; Piston diameter: 8; Rod: unilateral; Piston rod thread: M4 x 0.7; Magnetic piston: Yes; Effect: double-acting;
    €39.12
    Reference:
    HM-08-080
    Threaded connection: M5; Piston rod material: Stainless steel; Seal type: NBR; End position damping: not adjustable; Stroke/mm: 80; Piston diameter: 8; Rod: unilateral; Piston rod thread: M4 x 0.7; Magnetic piston: Yes; Effect: double-acting;
    €39.56
    Reference:
    HM-08-100
    Threaded connection: M5; Piston rod material: Stainless steel; Seal type: NBR; End position damping: not adjustable; Stroke/mm: 100; Piston diameter: 8; Rod: unilateral; Piston rod thread: M4 x 0.7; Magnetic piston: No; Effect: double-acting;
    €40.27
